2x HC412 telescopic 400mm stroke 12Vdc electro-mechanic irreversible actuators supplied with 1 m outdoor use cable H05RN-F 2 x 1mmq . Integrated mechanical end limits for the gate open and closed position.
1 x set of actuator’s stainless steel multi position fixing brackets

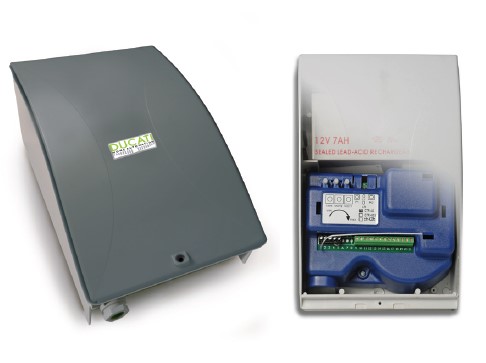

1 x KONTROL 7857 2.0 large control box with electronic board CTH44 integrated radio receiver
1 x SOLAR 1012 photovoltaic solar panel 10W 12V with fixing bracket
1 x 12V 7A battery
2 x radio transmitters remote controls Ducati rolling coded 433MHz
1 x blinking light
1 x key switch
1 x pair of low consumption safety infrared photocells made in stainless-steel
1 x aereal antenna
1x key for manual emergency release
Ideal for a 2-leaf swing gate up to 3,5m wide and 350 kg per leaf
Energy saving technology reduce guarantees 100% autonomous power supply from solar panel.
Ideal where AC grid is not available : It does not need any wiring to the AC mains power supply
Robust and reliable actuators with a classic design
400 long stroke telescopic actuators with powerful and reliable DUCATI electric motor 12Vdc ideal for very big post gates
Keeps your gate strongly closed to protect your property and guarantee your safety
Heavy duty gate opener: can work in continuous cycles without overheating
DUCO SAFE: the anti-pressure obstacle safety system complies with EU standards
High-performance control unit with a large variety of functions
Working mode selection: you can select Automatic closing function: the gate will automatically close after a setted pause time (you can vary the pause time from 1 to 100 seconds) or select the step-by-step working mode ( you will push on the remote control to open and push again to close)
Motor power adjustment: you can increase or decrease motor power and sensitiveness of reaction when reaching an obstacle
ideal where
C measure up to 18cm.
Where C measure is bigger it requires burglary work on the pillar to allow the actuator to be housed in the pillar in a position closer to the gate hinges

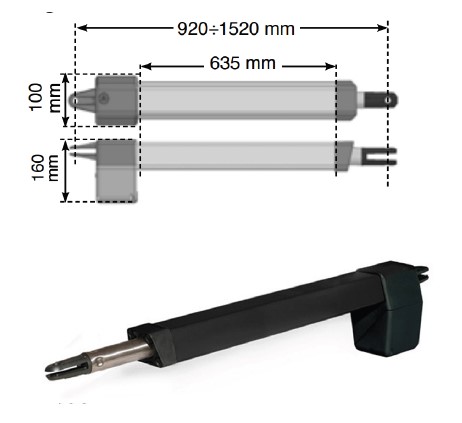

Actuator model HC412 technical data
Motor power supply (24V version) 12V dc
DC motore 120W
max. pushing power 2400N
stroke lenght 400m
motor speed 1.5cm /sec.
telescopic actuator √
irreversible ( auto locking system) √
working temperature -20°C/ +50°C
max wing length 3,5m
max.wing weight 350kg
max. opening angle 137°
manual emergency releasy system √
Electronic board model CTH44 technical data
Main power supply 12V dc from lead acid 12V battery + 12V min. 10W max 20W solar panel to recharge the battery.
stand-by power consumption 0,007A
radio receiver Ducati Rolling code 2 channels
remote controls channels storage capacity 10 remote controls
radio frequency 433,92MHz
remote control automatic learning √
Obstacle detection safety system (DUCO SAFE √
In compliance with EU-CE norms √
