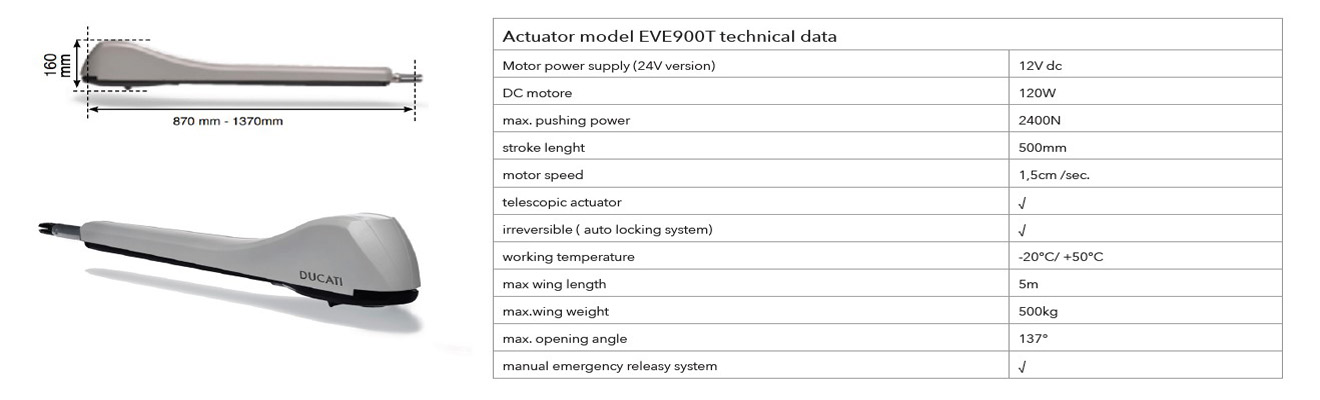

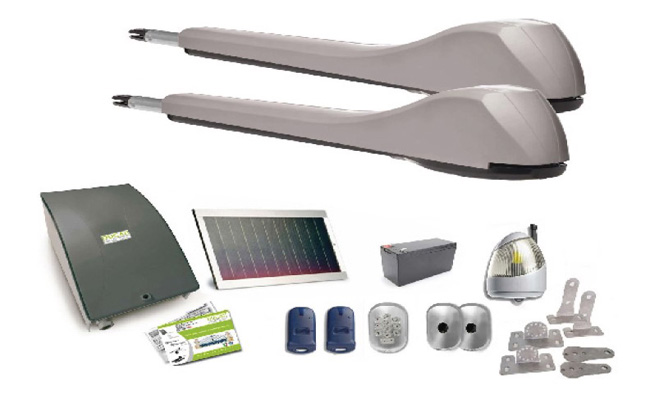

2x EVE900T telescopic 500mm stroke 12Vdc electro-mechanic irreversible actuators supplied with 1 m outdoor use cable H05RN-F 2 x 1mmq . Integrated mechanical end limits for the gate open and closed position.
1x set of actuator’s stainless steel multi position fixing brackets

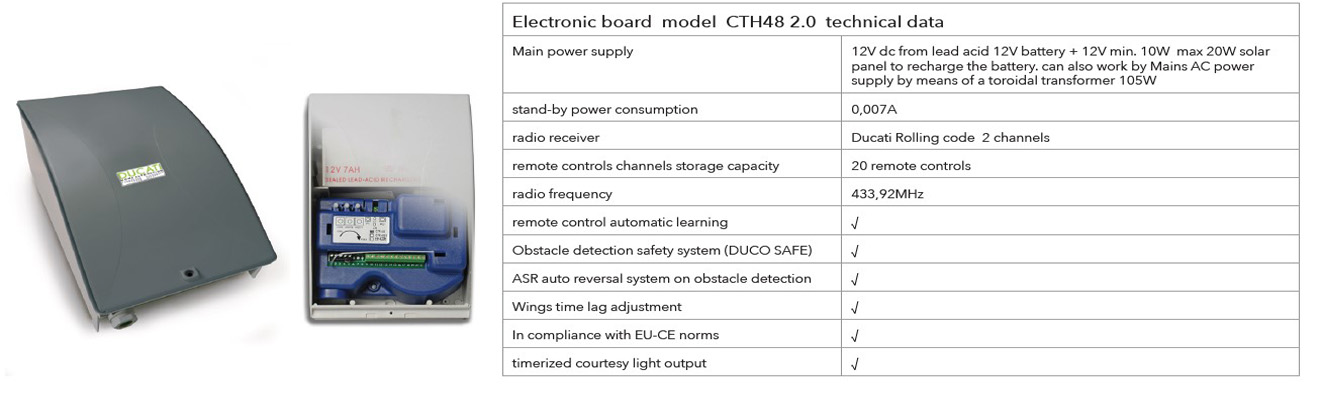

1x KONTROL 9048 2.0 large control box with electronic board CTH48 2.0integrated radio receiver

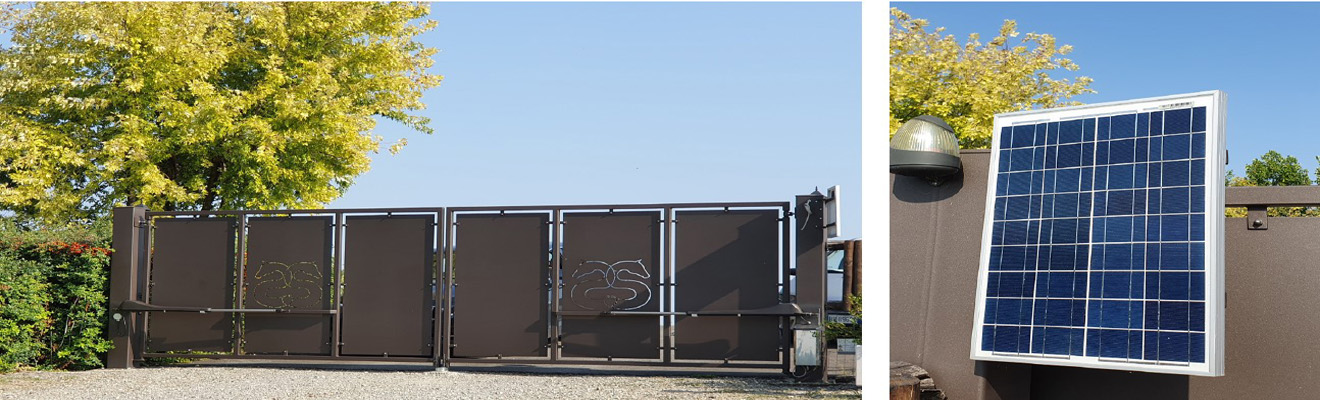

1 x SOLAR 1012 photovoltaic solar panel 10W 12V with fixing bracket
1 x 12V 7A battery
2x radio transmitters remote controls Ducati rolling coded 433MHz
1x blinking light
1x radio keypad ( wireless) 1 channel made in stainless-steel
1 x – pair of low consumption safety infrared photocells made in stainless-steel
1 x -aereal antenna
1x key for manual emergency release
Ideal for a 2-leaf swing gate up to 5m wide and 500 kg per leaf
Energy saving technology reduce guarantees 100% autonomous power supply from solar panel.
Ideal where AC grid is not available : It does not need any wiring to the AC mains power supply
The top of the ducati range, elegant design combined with technology and reliability over time
Robust and sturdy alluminium shell actuators with a unique and stilish italian design enhance the gates of most exclusive properties
Long stoke (500mm) telescopic actuators with powerful and reliable DUCATI electric motor 12Vdc
keeps your gate strongly closed to protect your property and guarantee your safety
Heavy duty gate opener: can work in continuous cycles without overheating
Quick opening and closing opening. Open your door faster than ever !
SOFT STOP: with slowing down and reversing on an obstacle
DUCO SAFE: the anti-pressure obstacle safety system complies with EU standards
High-performance control unit with a large variety of functions
Working mode selection: you can select Automatic closing function: the gate will automatically close after a setted pause time (you can vary the pause time from 1 to 100 seconds) or select the step-by-step working mode ( you will push on the remote control to open and push again to close)
Motor power adjustment: you can increase or decrease motor power and sensitiveness of reaction when reaching an obstacle
Soft stop starting point adjustment: you can set the moment when the gare start slowing down before reaching the open and closed position
Pedestrian opening adjustement: you can use one of the remote control’s button to open only 1 wing and allow pedestrian access only. you can adjust the opening angle of the pedestrian maneuver.
